  • Detailed description

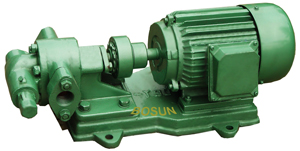

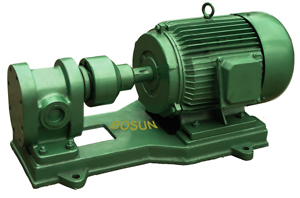

  • The gear pump is designed to transfer various oils such as crude oil, lube oil, diesel oil and vegetable oil. The safety valve mounted with the pump can protect it from overloading.


    Type: KCB or 2CY series.


    Model

    Nozzle

    Size

    		Capacity

    Discharge

    Pressure (MPa)

    Suction Head

    		Motor Power (KW)
    (inch) (m3/h) (L/min) (m)
    KCB18.3 (2CY-1.1/14.5-2) 3/4 1.1 18.3 1.45 5 1.5
    KCB33.3 (2CY-2/14.5-2) 3/4 2 33.3 1.45 5 2.2
    KCB55 (2CY-3.3/3.3-2) 1 3.3 55 0.33 5 1.5
    KCB55 (2CY-3.3/5-2) 1 3.3 55 0.5 5 2.2
    KCB83.3 (2CY-5/3.3-2) 1/2 5 83.3 0.33 5 2.2
    KCB83.3 (2CY-5/5-2) 1/2 5 83.3 0.5 5 3
    KCB200 (2CY-8/3.3-2) 2 8 133 0.33 5 4
    KCB200 (2CY-12/1.3-2) 2 12 200 0.13 5 4
    KCB200 (2CY-12/3.3-2) 2 12 200 0.33 5 5.5
    KCB200 (2CY-12/6-2) 2 12 200 0.6 5 5.5
    KCB200 (2CY-12/10-2) 2 12 200 1 5 7.5
    KCB300 (2CY-18/3.6-2) 3 18 300 0.36 5 5.5
    KCB300 (2CY-18/3.6-2) 3 18 300 0.36 5 7.5
    KCB483.3 (2CY-29/3.6-2) 3 29 483.3 0.36 5 7.5
    KCB483.3 (2CY-29/10-2) 3 29 483.3 1 5 11
    KCB633 (2CY-38/2.8-2) 4 38 633 0.28 5 11
    KCB633 (2CY-38/8-2) 4 38 633 0.8 5 22
    KCB960 (2CY-60/3-2) 4 60 960 0.3 5 18.5
    KCB960 (2CY-60/6-2) 4 60 960 0.6 5 30
    KCB2000 6 120 2000 0.3 5 30
    2CY-120/3-2
    KCB2500 (2CY-150/3-2) 6 150 2500 0.3 5

    37
